Van thủy lựcYUKEN DSG-03 series

Liên hệ

Tên hàng: Van thủy lựcYUKEN DSG-03 series

Nhập khẩu và Phân phối: Việt Tiến


Mô tả sản phẩm

Giới thiệu sản phẩm van thủy lực YUKEN DSG-03 series

van thủy lực YUKEN DSG-03-2B2-D24-N1-50 DSG-03-3C60-D24-50 DSG-03-3C2-D24-50 DSG-03-3C60-D24-501 DSG-03-2B2-D24-N-60 DSG-03-2B2-A240-N-60 DSG-03-2B8-D24-N-60 DSG-03-2B8-A240-N-60 DSG-03-3C2-D24-N-60 DSG-03-3C2-A240-N-60 DSG-03-3C4-D24-N-60 van thủy lực DSG-03-2B2-D24-50 DSG-03-2B8-D24-50 van điện thủy lực DSG-03-3C2-D24-50 DSG-03-3C60-D24-50 DSGL-01-C32 DSGL-01-2D2 DSGL-2B2 DSGM-01-30 DSGM-01X-30 DSGM-01Y-30 DSG-03-3C2 DSG-03-2D2 DSG-03-2B2 DSG-03-3C2 DSG-03-2B2 DSG-03-2D2 DSHG-04-3C2 DSHG-04-2N DSHG-04-2B DSHG-06-3C DSG-03-3C2 DSG-03-3C3 DSG-03-3C4 DSG-03-3C60 DSG-03-3C2 DSG-03-3C3 DSG-03-3C4 DSG-03-3C60 DSHG-04-3C2 DSHG-04-3C3 DSHG-04-3C4 DSHG-04-3C60 DSHG-06-3C2 DSHG-06-3C3 DSHG-06-3C4 DSHG-06-3C60 DSHG-10-3C2 DSHG-10-3C3 DSHG-10-3C4 DSHG-10-3C60 DSHG-06-2B2A-C2 DSG-03-3C4-D24-50

Thes valves are adapted with strong wet-type solenoid and circuit designs toaccomplish high pressure, large volume folw and lower pressure drop.
The optimum valve for any system can be utilized since many spool types andvarious solenoids are all available, along with other optional function.
The pressure drop caused by the passing of pressurized oil is reduced toapprox.  1/2 of the conventional Yuken model.
Good Light Weight design has accomplished to reduce body weight

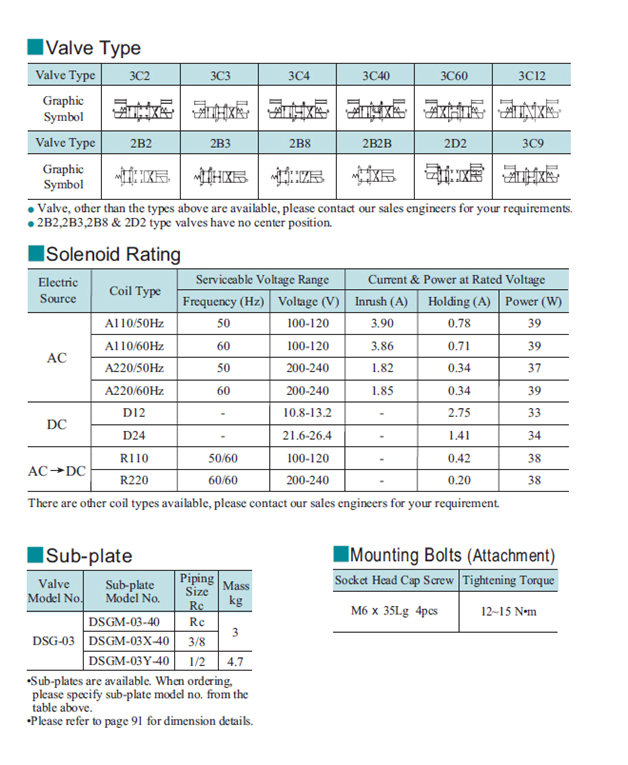

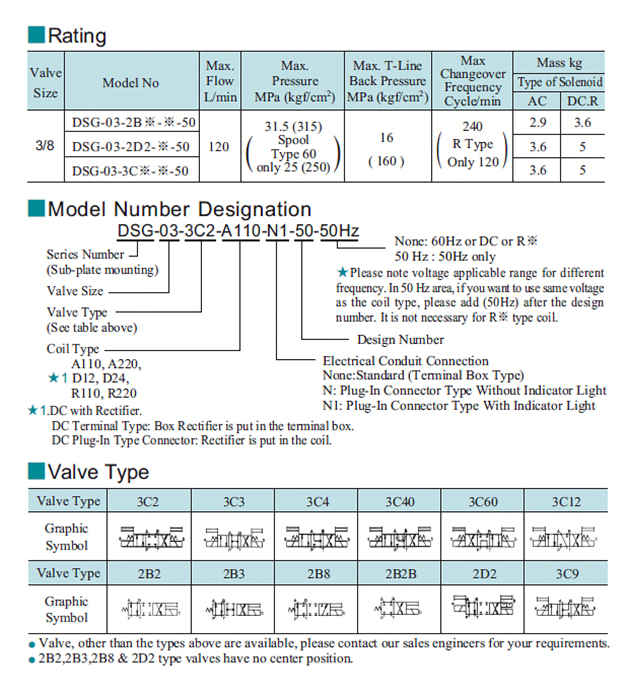

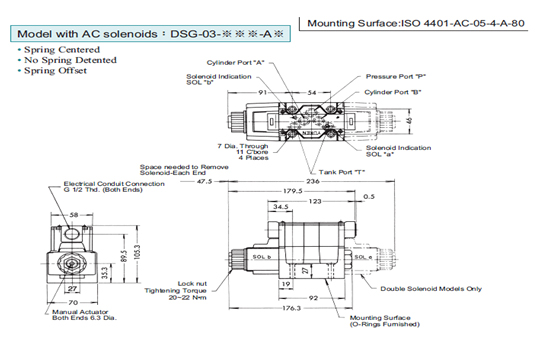

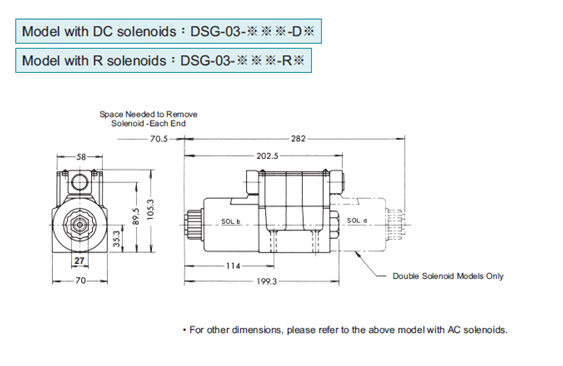

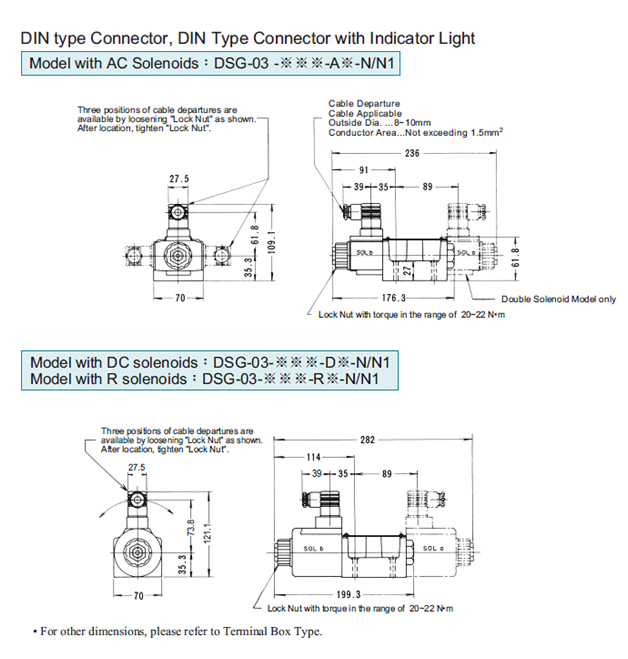

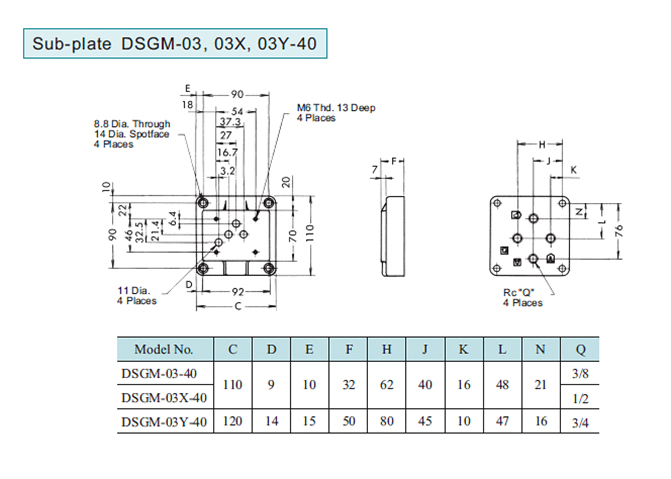

Thông số kỹ thuật van thủy lực YUKEN DSG-03 series
